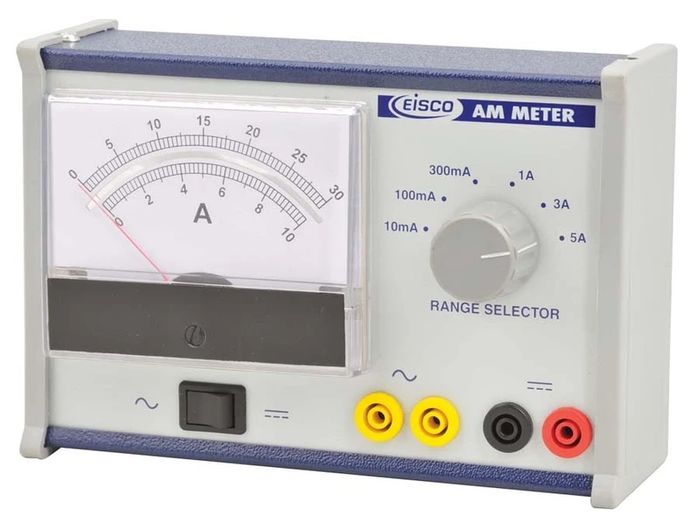

Ammeter10-100-350mA 1-3-5A multirange

Stock Code:
PH1108B
Unit:
Each
Price:
$110.00 (ex GST)

Description

For DC & AC current and voltage. The operation of these meters depend on the reaction of the current circulating in the moving coil and a field of a fixed permanent magnet. Considering the operationalnature and design of these instruments , the scale is linear. Since the direction of the movement rotation depends on the direction of the current flow ( polarity) in the circuit. The moving coil multirange meter can be used on direct current circuit and also alternating current with a suitable rectifier inserted in the circuit.

Moving Coil Multirange Meter - AmmeterDC - AC Ammeter Ranges0 - 10 mA, 100 mA, 300 mA, 1A, 3A, 5AAccuracy : DC + 2 F. S. D., AC + 2.5 F. S. D.Scale Length : 85 mm Approx with knife edge pointer and anti parallel mirror scaleDial Size : 80 x 100 mm rectangularOverall Size : 190 x 125 x 85 mm Approx.

Awaiting Stock
