Dissectible transformer full kit

Stock Code:
1660-001
Unit:
Each
Price:
$855.00 (ex GST)

Description

The IEC Dissectible Transformer is the classic instrument for teaching the principles of the transformer.

The large iron core has a section of 35x35mm and the 'I' is clamped to the 'U' to close the magnetic circuit. Various special coils are available but the standard set contains a mains operated primary with on/off switch and a removable mains cable together with a low voltage, heavy current tapped secondary coil.

A plastic foot protects the work bench. The kit contains also a rugged 'spot welder' and a heavy copper ring that heats to melt wax or melt solder through induction.

The coil formers are made from heat resistant glass filled nylon and are unbreakable.

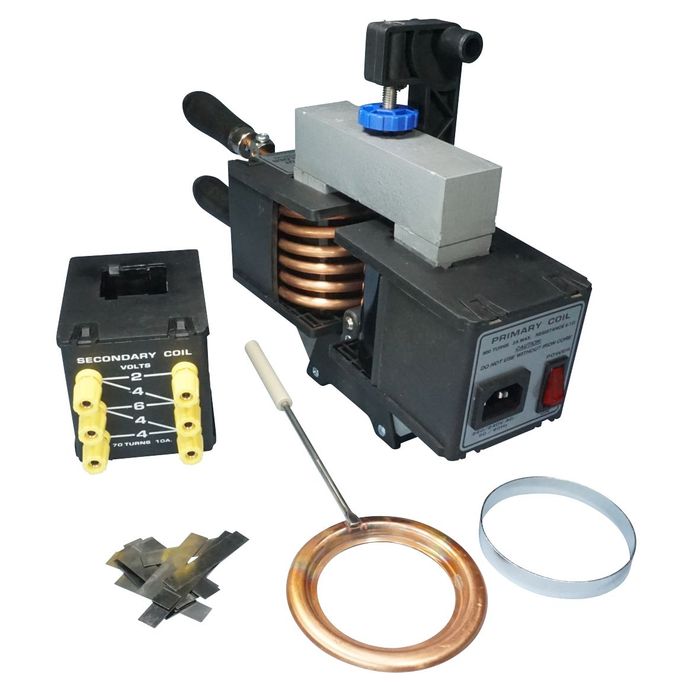

The standard kit contains:
• 1x ‘U’ and ‘I’ laminated core, 35x35mm section, with feet for stability.
• 1x Strong clamp with integral carry handle.
• 1x Primary coil, mains voltage, with on/off switch and removable mains cable.
• 1x Secondary coil, low voltage with tappings for adding and subtracting voltages.
• 1x Spot welding coil with handles.
• Quantity of metal strips for spot welding.
• 1x Melting ring to demonstrate Induction Heating.
• 1x Heavy aluminium ring to demonstrate Thompson’s effect.

(spare & replacement parts available on request)

Awaiting Stock
