Capillary Tube Set - 6 different bores

Stock Code:
PH0202A
Unit:
Set: 6
Price:
$26.00 (ex GST)

Description

Specifications:

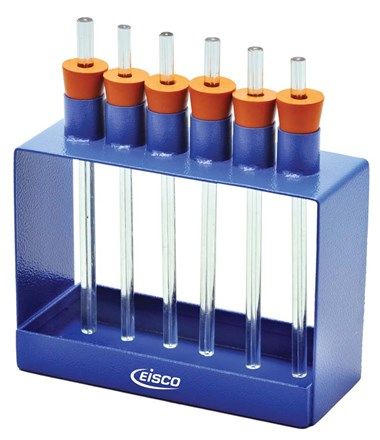

  • Capillary Tubes Apparatus for demonstrating the relationship between capillary pressure and the bore diameter of the capillary tube.
  • The apparatus is comprised of a metal frame arrangement with a base trough, an upper part of the frame that supports six capillary tubes, six bore holes fitted with stoppers and six capillary tubes. The trough is filled with water and the difference in height can be seen.
  • The metal frame is approximately 140mm long, 75mm wide, and 140mm tall. The bottom trough is approximately 20mm deep.
  • The total apparatus is approximately 190mm tall, 75mm long, and 190mm wide.
  • Outer diameter and inner diameter of each tube: tube 1: 8mm OD, 4mm ID. Tube 2: 7mm OD, 2mm ID. Tube 3: 8mm OD, 3mm ID. Tube 4: 6mm OD, 1mm ID. Tube 5: 8mm OD, 2mm ID. Tube 5: 5mm OD, 1mm ID.



Awaiting Stock
