Mixer Orbital 50x50cm digital controller

Stock Code:
OM7
Unit:
Each
Price:
$4,150.00 (ex GST)

Description

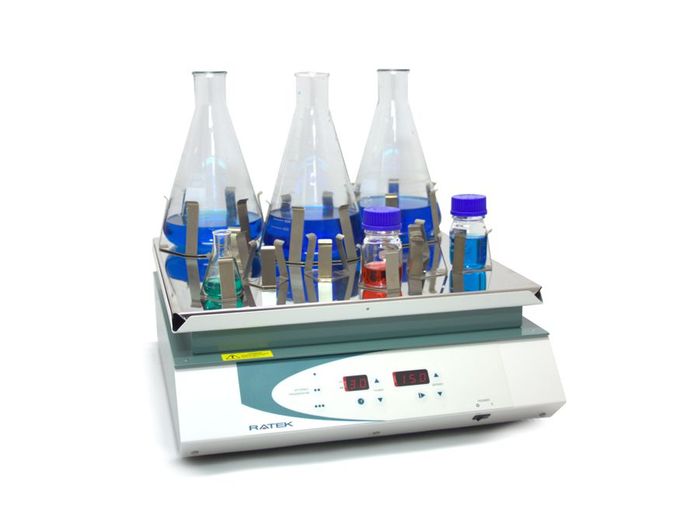

The OM7 orbital mixer has a 500mm square platform supported by precision ball races and can handle loads up to 25 kg’s, it is suitable for use in many applications including medical diagnostics, sample preparation, product testing etc. The digital speed control has a range of 30-400 RPM and is controlled from the easy to read front panel where a large LED display can show set and actual speed, when required the OM7 can run for extended periods unattended. Slow acceleration is incorporated in the drive system to help protect samples and reduce the risk of spillage. The timer can be set from 0-99 in either minutes or hours, in addition the OM7 has 3 memory buttons to allow repeat time/speed functions to be stored. A Nitrile mat is supplied fitted to the platform and is sufficient for holding containers at low speeds. For higher speeds optional racks are available.
Applications
Applications include general mixing, cell culturing, solubility studies, diagnostic testing, bacterial suspensions, extraction procedures, staining/destaining, washing procedures as well as many other biological and chemical tasks.
Specifications
Power requirements 240vac/100 watts
Capacity 500 x 500mm platform maximum capacity 25kg's
Mixer control Microprocessor control with digital tachometer
Motor Brushless AC
Speed range 40-400 rpm through an orbit diameter of 25mm
Timer 0-99 minutes or 0-99 hours with 3 presets
Safety features Motion interrupt cut out, integrated spill tray
Overall dimensions w505 x d570 x h180 mm
Weight 20kg

Awaiting Stock
