Mixer Orbital incubator 700x530mm

Stock Code:
OM25
Unit:
Each
Price:
$11,845.00 (ex GST)

Description

Product Overview

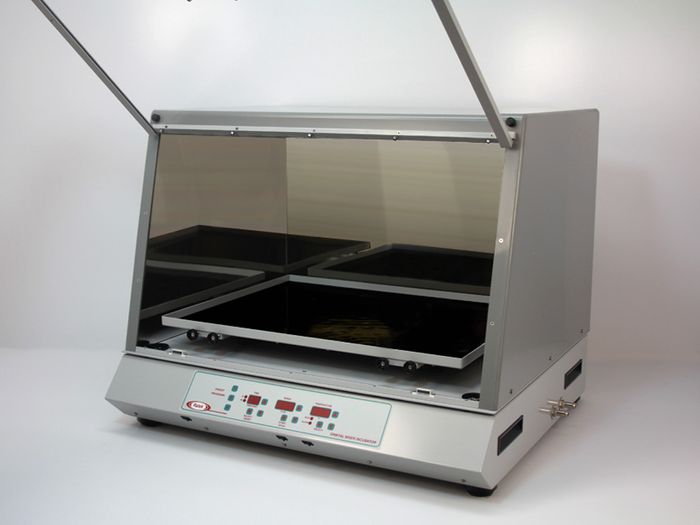

The OM25 is a heavy duty orbital mixer within a temperature controlled cabinet, and is designed to run for extended periods when required. Separate clearly marked controls and displays for temperature speed and timer ensure the OM25 is easy to use and monitor. Slow acceleration is incorporated in the drive system to reduce the risk of spillage, plus a safety system that cuts power to the drive if an overload or jamming occurs. Fan assisted heating coupled with the custom microprocessor control ensures accurate temperature control within the cabinet. A built in recirculation system allows for cooled water from an external source to be used and temperature control at and below ambient to be achieved. The Ratek RC4 Refrigerated cooler is most suitable for this purpose. A Nitrile mat is supplied fitted to the platform and is sufficient for holding containers at low speeds. For higher speeds optional racks are available. The RR25 Universal rack is suitable for a variety of different sizes and types of container. Stainless steel Tulip clips are also available dedicated to conical flasks from 50ml to 2 litre.
Applications
Orbital Mixer/Incubator applications include Cell Culture, Staining/destaining, Hybridisations, Solubility Studies, Extraction procedures, Plasmid purification, Washing procedures, Bacterial suspensions, DNA fingerprinting, Protein expressions and General mixingSpecifications

Power requirements

240 VAC/900 watts



Capacity

700 x 530mm platform maximum capacity 15kg's



Vertical clearance above tray

409mm



Mixer control

Microprocessor control with digital indication of speed, temperature and run time



Motor

Brushless AC



Speed range

40-400 rpm through an orbit diameter of 25mm



Heater

Fan assisted spiral wound element



Control range

Ambient + 7°C to 70°C (can control below ambient with external supply of cooled water)



Control stability

± 0.2ºC



Timer

0-99 minutes or 0-99 hours with 3 presets



Safety features

Motion interrupt cutout, over temperature cutout, door open drive cutout



Overall dimensions

W850 x D720 x H680 mm

Awaiting Stock
