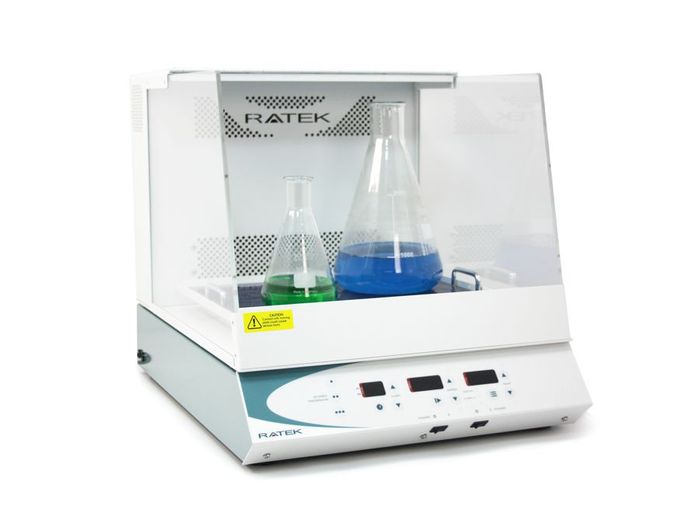

Mixer Orbital incubator 400x400mm

Stock Code:
OM11
Unit:
Each
Price:
$5,795.00 (ex GST)

Description

The OM11 is a compact bench top orbital mixer within a temperature controlled cabinet. Separate clearly marked controls and displays for temperature, speed, and timer ensure the OM11 is easy to operate and monitor. The counterbalanced drive system incorporates slow acceleration to reduce the risk of spillage plus a safety system that operates if an overload or jamming occurs. The platform is covered with a nitrile mat that is sufficient for holding containers at low speeds. For higher speeds optional racks are available. The RR10 Universal rack is ideal when a variety of different sizes and types of container are used. Fan assisted heating coupled with the custom microprocessor control ensures accurate temperature control within the cabinet. The cabinet cover is hinged at the top to allow easy access to the platform, for ease of cleaning the cabinet complete with the hinged cover can be removed without the need for tools.
Applications
Orbital Mixer/Incubator applications include Cell Culture, Staining/destaining, Hybridisations, Solubility Studies, Extraction procedures, Plasmid purification, Washing procedures, Bacterial suspensions, DNA fingerprinting, Protein expressions and General mixingSpecifications

Power requirements

240VAC/50hz/540 Watts



Capacity

400 x 400 mm platform max. capacity 8kg's



Vertical clearance above tray

320mm



Mixer control

Microprocessor control with digital speed and temperature indication



Motor

Brushless ac



Speed range

40-400 rpm through an orbit diameter of 20mm



Heater

Fan assisted with spiral wound element



Control range

28°C to 70°C.(min 6°C above ambient)



Control stability

± 0.2ºC



Timer

0-99 minutes or 0-99 hours with 3 presets



Safety features

Motion interrupt cut out. Over temperature cut out



Overall dimensions

W470 x D625 x H490mm



Weight

34 kg





Awaiting Stock
