P/Supply for Mass of Electron 12V/250V

Stock Code:
2622-002
Unit:
Each
Price:
$603.80 (ex GST)

Description

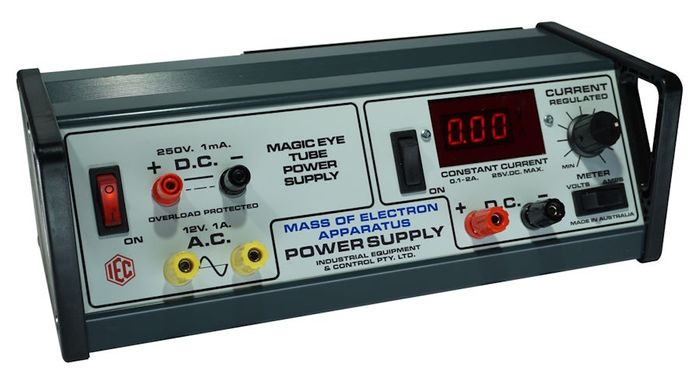

This special purpose IEC Power Supply is designed for the "Mass Of Electron" experiment (2120-001).

Outputs:

Fixed voltages - 250V DC  at about 1mA and 12V AC at about 1A.

Adjustable and regulated current 0.1A - 2A up to 25V max.

The high voltage is for the anode connection of the Magic Eye tube, the 12V is for the tube's heater and the regulated current is to control the current and thus the magnetic field in the Air Cored Solenoid (0090-001). A switch permits the large meter to monitor either the regulated current or the output volts.



Awaiting Stock
