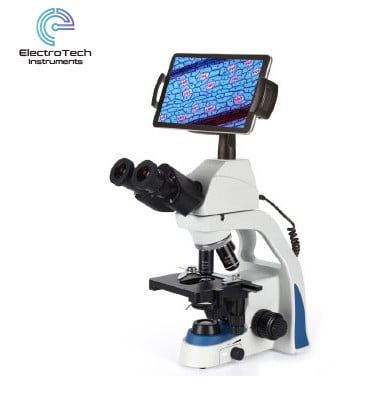

Microscope digital Wi-Fi Binocular 1000X

Stock Code:
MS1044A-DM
Unit:
Each
Price:
$1,495.00 (ex GST)

Description

The Digital Wi-Fi Binocular Microscope comes with a 30° inclined 360° rotatable head, a plan eyepiece with eye guard, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser, and variable intensity LED transmitted illumination system.

This Digital Wi-Fi Binocular Microscope offers four levels of magnification power: 40X-100X-400X-1000X. The USB digital imaging system captures microscope images and live video on a computer. This type of digital compound microscopy is ideal for teaching demonstrations, clinical examinations, laboratories, and advanced applications.

Features

  • Binocular Head, 360 Rotatable
  • Built In WIFI Camera
  • Quadruple Nosepiece
  • Adjustable LED
  • Adapted Power Supply


Specifications

Head

Binocular Head, 30 degrees inclined, 360 degrees rotatable. Inter-pupillary distance 50-75mm. Built-in Wi-Fi Camera, 2MP



Eyepiece

Plan Eyepiece 10x/18mm With Eye Guard



Nosepiece

Built-in Quadruple Nosepiece



Objective

Achromatic 4x/0.10 (Black) Achromatic Objectives 10x/0.25 (Black) Achromatic Objectives 40xS/0.65 (Black) Achromatic Objectives 100xS/1.25 (Oil) (Black)



Stage

115x125mm Double Layers Mechanical Stage, With N.A. 1.25 Abbe Condenser, With Iris Diaphragm & Filter Holder, Moving Range 22mm-71mm



Focus

Coaxial Coarse & Fine Focus with Course Adjustment Stop Screw and Tightness Adjustment, Focusing Range 13mm with Clip Stage, (7mm with mechanical Stage), Fine Precision 0.004mm



Light

0.2W LED (5700-6500K), Intensity Adjustable



Power Supply

Adapted Power Supply 100-240V / 12V 3.3A

Awaiting Stock
