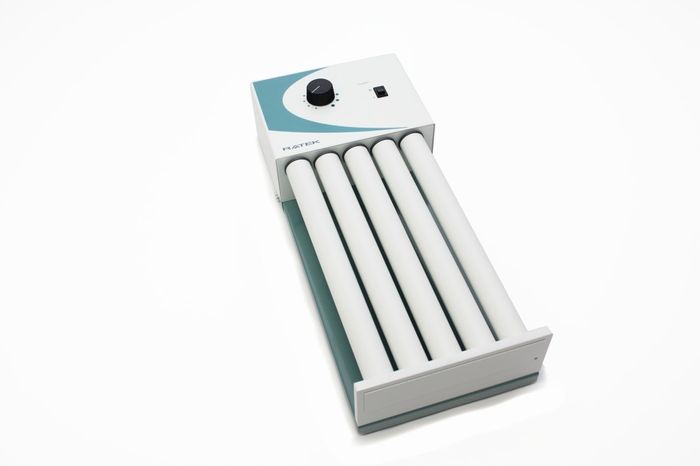

Bottle mixer 5 rollers

Stock Code:
BTR5
Unit:
Each
Price:
$1,725.00 (ex GST)

Description

These roller mixers can accommodate a range of different vials, small bottles, and test tubes of various sizes. Each pair of rollers can hold up to 1 kilogram. As an example the BTR10 can hold up to 54 x 5ml blood tubes. The coated aluminium rollers are mounted on eccentric drive spindles to provide a rocking as well as rolling motion, ensuring a thorough mixing action. Parallel rollers can be specified, if preferred. Speed of the rollers is variable between 10 and 60 rpm. to cover a wide range of mixing requirements. The sprocket and chain drive, coupled with ball race roller mounting, will ensure smooth trouble free operation. Both the BTR5 and BTR10 mixers can run continuously for many hours unattended.
Applications
Ideal for applications such as the mixing of blood samples, viscous substances and liquid-solid suspensions where minimal aeration is required. Can also be used in aiding the de-frosting of samples.Specifications

Power requirements

12VDC



Control type

Solid state with variable speed between 10 and 60rpm



Motor

12 volt DC geared



Drive

Chain and sprockets



Rollers

30mm diameter x 300mm long



Tilt angle

3.5° from horizontal (7° overall per revolution)



Overall dimensions

L500 x W215 x H120



Weight

5.0 kg





Awaiting Stock
