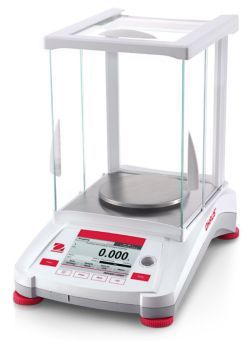

Balance Adventurer 520g x 1mg auto cal

Stock Code:
AX523
Unit:
Each
Price:
$3,129.00 (ex GST)

Description

The Ohaus Adventurer AX523 has a capacity of 520 grams and a readability of 0.001 gram (1 milligram) with AutoCal™ internal calibration. The AX523 features a 4.3 inch color touchscreen display that gives users easier access to settings and applications. Also, all Adventurer balances offer GLP/GMP compliance capabilities, two USB ports and milligram models come with an ingenious, space saving, modular draftshield. The AX523 has a stabilization time of 2 seconds or less. As with all AX adventurers, you can transfer data directly to any open Microsoft Office application with the included software.

Capacity 520 g
Readability 0.001 g
Pan Size Ø 5.1" / 130 mm
Repeatability std ±0.001 g
Linearity ±0.002 g
Stabilization Time ≤2 seconds
Sensitivity Drift (ppm/°C) 3
Typical Operating Range
(u=0.10%, k=2)		 2.0g -520g
Optimal Operating Range
(u=0.10%, k=2)		 0.82g - 520g
Weighing Units gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Applications weighing, parts counting, percent weighing, check weighing, dynamic weighing, formulation, density determination, totalization, display hold
Calibration AutoCal™ internal calibration
Tare Range To capacity by subtraction
Power Requirements AC Adapter Input: 100-240 VAC 0.3A 50-60Hz
AC Adapter Output: 12 VDC 0.84A
Display Type Full-Color Touchscreen WQVGA Graphic LCD
Display Size 4.3 inches / 109 mm (diagonal)
Base Housing (WxHxD) 13.93 x 13.39 x 9.05 inches / 354 x 340 x 230 mm
Communication Interfaces RS232, USB Device, USB Host
Temperature Range 50°F to 86°F / 10°C to 30°C
Humidity Range Maximum relative humidity 80% for temperatures up to 86°F/30°C
Storage Conditions 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing
Net Weight 12.8 lbs / 5.8 kg
Shipping Dimensions 20.0 x 15.4 x 20.9 inches / 507 x 387 x 531 mm
Shipping Weight 18.8 lbs / 8.5 kg

Awaiting Stock
