Microscope biological monocular 40-1000X

Stock Code:
MS1035A
Unit:
Each
Price:
$415.00 (ex GST)

Description

Description

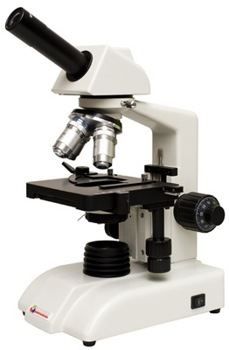

The MS1035A  Monocular Microscope features a mechanical stage, iris diaphragm, NA1.25 Abbe condenser LED  illumination and 4 objectives. This feature packed microscope makes a great choice for any lab and represents great value.

Features

  • Achromatic objectives reduce chromatic and spherical aberration
  • 1000X maximum magnification
  • Separate fine/coarse focusing with safe rack stopper


Specifications

Max Magnification

1000X

Viewing Head

Monocular head, 45° inclined, 360° rotating

Eyepiece

Wide Field (WF) 10X/18mm

Objective 1

Din 45mm achromatic 4X / NA0.10

Objective 2

Din 45mm achromatic 10X / NA0.25

Objective 3

Din 45mm achromatic 40X / NA0.65

Objective 4

Din 45mm achromatic 100XR (Oil) / NA1.25

Nosepiece

Quadruple Nosepiece with positive click stopper

Stage

Built-in mechanical stage 125mm x 130mm with specimen holder controlled by coaxial knobs

Diaphragm

Iris diaphragm

Condenser

NA1.25 Abbe condenser

Focusing System

Separate fine & coarse focusing with safe rack stopper

Illumination

5W Fluorescent bulb 230VAC (MS1036)

Awaiting Stock
