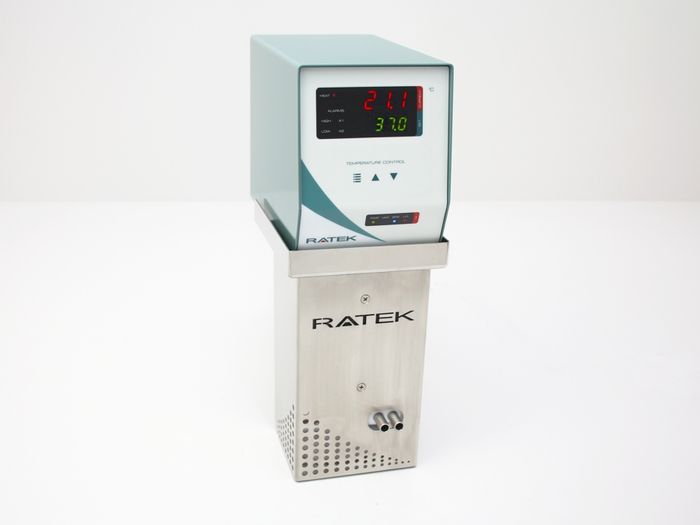

Immersion heater Precision max. 100x0.1C

Stock Code:
TH8000
Unit:
Each
Price:
$1,985.00 (ex GST)

Description

The TH8000 immersion heater circulator provides precision temperature control via it’s large user-friendly dual-line interface. It features excellent stability of +/- 0.04°C in a Ratek insulated tank and features a powerful adjustable 17 L/min pump with dual outlets for external pump-out where required whilst the high-flow pump ensures uniform temperatures in even the largest of baths.

The large bright dual-line LED display is easily visible from any angle and makes it easy to monitor your application from anywhere in the lab. The TH8000 features an adjustable preset mode for commonly set temperatures, as well as a host of safety features including low-level alarm and cut-out, over and under temperature alarms as well as a manually resettable failsafe thermostat.

With a 1 kW heating element, the TH8000 is ideal for heating smaller baths and delivers excellent temperature stability. The TH8000 is also suitable for use in larger baths where only lower operating temperatures are required, and is designed to work in conjunction with a Ratek cooling system to produce accurate repeatable temperatures below ambient.

The TH8000 is whisper quiet, very simple to operate, is loaded with features and like all Ratek equipment is built to last.
Specifications
Temperature Control Advanced digital PID with fuzzy logic
Circulation Type High-flow dual outlet pump with adjustable flow rate, 0-17 L/min at zero head
Digital Display Type Dual-line active bright LED
Information Display - Current & set temp displayed concurrently
- Over & under temp alarm set-point
- SP2 preset set-point
- Low water level indicator
- Heating indicator
- Operating mode indicator
- 0.1° resolution
Temperature Control Range -30°C to 100.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.02°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm - Audible & visual over-temp with cut-out
- Audible & visual low level with cut-out
- Visual under-temp indicator
Safety features - Resettable safety thermostat
- Low water level cut-out
- Over-temp cut-out
- Over-current protection
- Fully enclosed element guard
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 4.9 kg

Awaiting Stock
