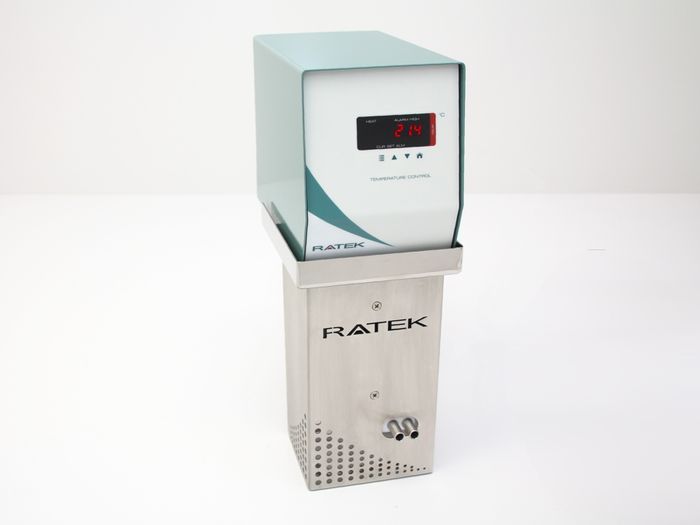

Immersion heater max 150x0.1C w/pump

Stock Code:
TH7300
Unit:
Each
Price:
$1,836.00 (ex GST)

Description

The TH7300 is designed to satisfy applications that demand a wider operating temperature range and is capable of controlling down to -30°C with suitable cooling and up to +150°C in a suitable medium. The high-flow pump ensures excellent temperature uniformity, whilst the simple to use full digital PID control system produces accurate and stable temperatures. The low watts-density element is suitable for heating silicon oil and ethylene glycol based heating media.

All Ratek immersion heater circulators are built to withstand the toughest of operating environments and feature a unique vent system to ensure steam is kept away from the control unit. The TH7300 features Ratek’s unique expandable clamp bracket system allowing it to be easily fitted to most brands of bath, and also includes a retort stand mounting option for applications where the circulator needs to be suspended over the tank. When used with a Ratek insulated bath, a matching bridge plate is ideal and maximises usable bath space. The TH7300 immersion circulator delivers fantastic performance and usability for more specialist use, whilst being equally suited to less demanding applications. This makes it a good all-round choice for a versatile circulator that can be moved easily from task to task.
Specifications
Temperature Control Full Digital PID
Circulation Type High-flow dual outlet pump with adjustable flow rate, 0-17 L/min at zero head
Digital Display Type Active bright red LED
Information Display - Current temperature
- Set temperature
- Over-temp alarm set-point
- Heating indicator
- 0.1° resolution
Temperature Control Range -30°C to +150.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.1°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm Visual over-temp indicator
Safety features - Resettable safety thermostat
- Over-current protection
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 4.46 kg

Awaiting Stock
