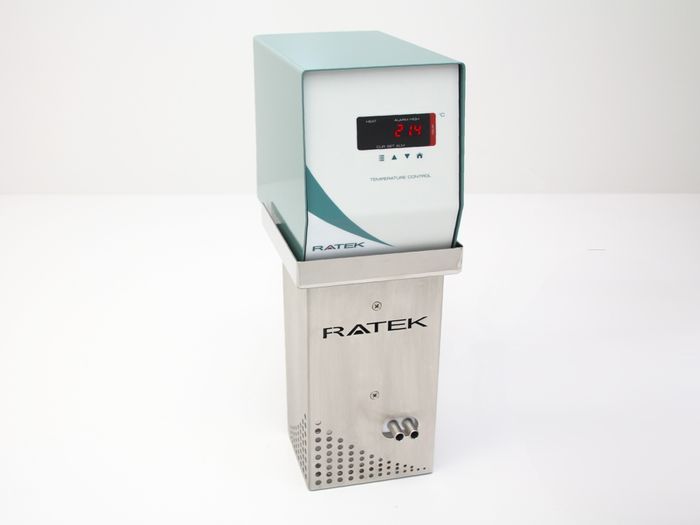

Immersion heater max 100x0.1C w/pump

Stock Code:
TH7100
Unit:
Each
Price:
$169.00 (ex GST)

Description

The TH7100 offers excellent temperature uniformity combined with simple operation. The high-flow dual outlet pump ensures uniform temperatures in even the largest of baths and features an adjustable flow rate, whilst the digital PID control system produces accurate and repeatable results.

The TH7100 can be utilised in a wide variety of biomedical, life science, and industrial applications as well as in commercial kitchen cooking techniques such as Sous Vide. All Ratek immersion heater circulators are built to withstand the toughest of operating environments and feature a unique vent system to ensure steam is kept away from the control unit. The TH7100 features Ratek’s unique expandable clamp bracket system allowing it to be easily fitted to most brands of bath, and also includes a retort stand mounting option for applications where the circulator needs to be suspended over the tank. When used with a Ratek insulated bath, a matching bridge plate is ideal and maximises usable bath space. With a built-in safety guard to fully enclose the element as well as a pump-out facility to circulate externally, TH7100 immersion circulator is extremely versatile and ideal for a wide range of uses.
Specifications
Temperature Control Full Digital PID
Circulation Type High-flow dual outlet pump with adjustable flow rate, 0-17 L/min at zero head
Digital Display Type Active bright red LED
Information Display - Current temperature
- Set temperature
- Over-temp alarm set-point
- Heating indicator
- 0.1° resolution
Temperature Control Range 0°C to 100.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.1°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm Visual over-temp indicator
Safety features - Resettable safety thermostat
- Over-current protection
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 4.46 kg

Awaiting Stock
