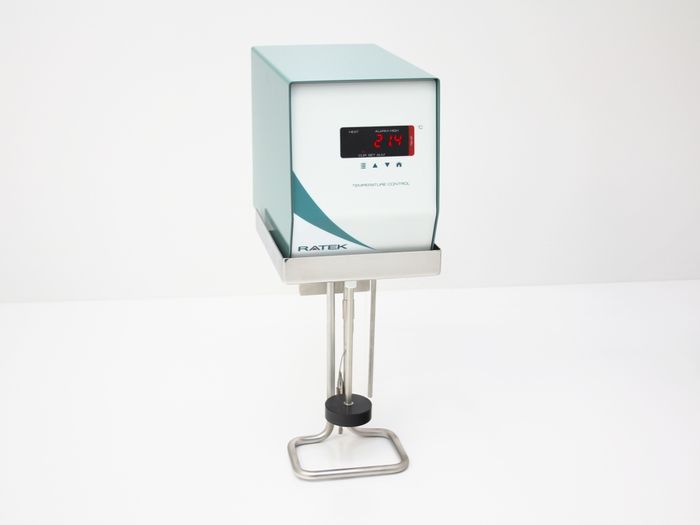

Immersion heater max 100x0.1C impeller

Stock Code:
TH7000
Unit:
Each
Price:
$1,395.00 (ex GST)

Description

The TH7000 offers a host of features that make it ideal for many temperature control applications where a pump out facility is not required. The simple to use full digital PID control system produces accurate and stable temperatures, whilst the high-flow circulating paddle ensures good temperature uniformity even in larger baths. The TH7000 is Ratek’s entry level immersion circulator, yet is capable of satisfying many applications where stable temperatures are critical.

The TH7000 can be utilised in a wide variety of biomedical, life science, and industrial applications as well as in commercial kitchen cooking techniques such as Sous Vide. All Ratek immersion heater circulators are built to withstand the toughest of operating environments and feature a unique vent system to ensure steam is kept away from the control unit. The TH7000 features Ratek’s unique expandable clamp bracket system allowing it to be easily fitted to most brands of bath, and also includes a retort stand mounting option for applications where the circulator needs to be suspended over the tank. When used with a Ratek insulated bath, a matching bridge plate is ideal and maximises usable bath space. With all the key features that many applications demand, the TH7000 immersion circulator delivers value for money with performance that is unmatched in it’s class.
Specifications
Temperature Control Full Digital PID
Circulation Type High circulation anti-splash impeller
Digital Display Type Active bright red LED
Information Display - Current temperature
- Set temperature
- Over-temp alarm set-point
- Heating indicator
- 0.1° resolution
Temperature Control Range 0°C to 100.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.1°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm Visual over-temp indicator
Safety features - Resettable safety thermostat
- Over-current protection
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 3.6 kg

Awaiting Stock
